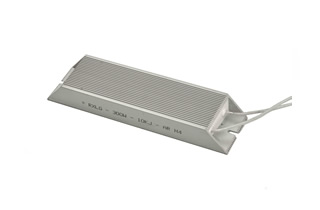

RXLG aluminum shell power resistor

□ Suitable for use as short-term energy absorbing components in inverters, power electronics and communication devices. It can also be used as a partial pressure, shunt and load component. It is widely used in high requirements and harsh environments such as power supply, inverter and servo.
□ Can produce products that meet RoHS and REACH requirements
□ It is integrated with flame retardant material and has good vibration resistance.
□ Non-inductive products can be negotiated
□ There are two installation methods, two kinds of extraction methods, which are convenient for users to select. According to the installation method, it is divided into A type, B type, C type and D type. The A type, C type and D type resistors are horizontal installation structures, and the B type resistors are vertical installation structures. The resistor is one-end lead-out mode. According to the form of the lead-out line, it is divided into R type and Y type, R type is the soft lead lead-out mode, and Y type is the metal piece lead-out mode.
□ Product standard: Q/RW507-2014 "Detailed specification of RXLG aluminum shell wirewound fixed resistor"
□ Outline structure, size and performance parameters

Model	power (W)(25C)(With heat sink)	Dimensions(mm)						Resistance rangeΩ	Cross-sectional area（mm2）	Recommended standard heat sink (cm2) thickness 3mm
		L1	L2	L3	W	H	A
RXLG-50	50	68	76	90	40	20.00	5.50	2-5.1	1.2	824
