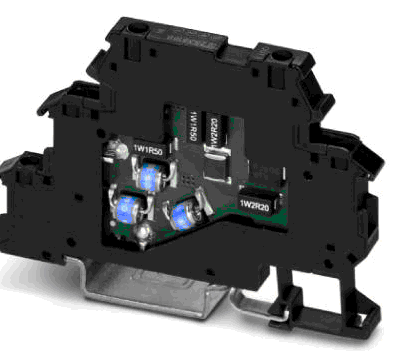

TT-2-PE-24DC Phoenix lightning arrester
Deilvery time：4——6weeks
Total surge current (8/20) µs 10 kA Total surge current (10/350) µs 1 kA Ambient temperature (operation) -40 °C ... 85 °C Mounting type DIN rail 35 mm Design Double-level terminal block with PE foot – separate PE connection Number of positions 2 Degree of protection IP20 Direction of action Line-Line & Line-Earth Ground Width 6.20 mm Height 54.60 mm Length 79.60 mm Protective circuit IEC category C1 C2 C3 D1 Nominal voltage UN 24 V DC 17 V AC Max. operating voltage Umax 30 V DC 21 V AC Arrester rated voltage UC 30 V DC 21 V AC Arrester rated voltage UC (Core-Core) 30 V DC 21 V AC Nominal current IN 300 mA (≤ 45°C) Operating effective current IC at UC ≤ 10 µA Discharge current to PE at UC ≤ 1 µA Nominal discharge surge current In (8/20) µs (Core-Core) 5 kA Nominal discharge surge current In (8/20) µs (Core-Earth) 5 kA Total surge current (8/20) µs 10 kA Max. discharge surge current Imax (8/20) µs maximum (Core-Core) 5 kA Max. discharge surge current Imax (8/20) µs maximum (Core-Earth) 5 kA (per path)
